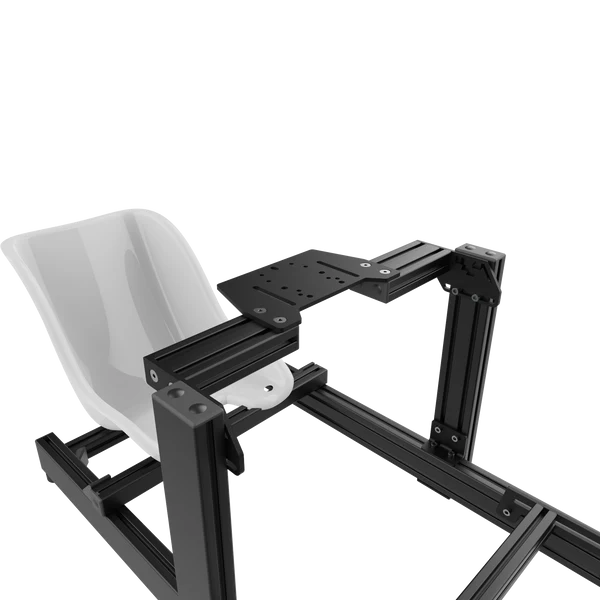

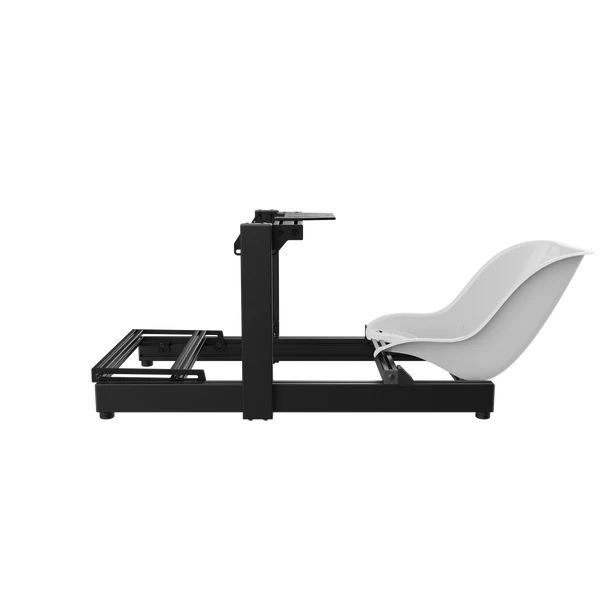

Advanced Sim Racing - ASR K (Generation 2)

ALL ASR-K ARE MADE TO ORDER, LEAD TIME OF 10 TO 15 BUSINESS DAYS
Meet the ASR-K, made for Kids age 4 to 12 and Karting.
We created the ASR-K with the goal of providing an affordable chassis option for parents looking to get their kids into karting or for training at home.
The ASR-K is robust enough to support any kind of belt-driven or direct drive powered wheel base. Although it doesn't feature heavy aluminum profile like our upper tier models, it is made of top-grade alloy Aluminum sourced in the United States of America.
Available with the seat included or without the seat.
Karting seat is optional. It is predrilled to fit the ASR-K and includes low profile Button Head M8 bolts to avoid discomfort.
Produced and packaged in Canada with the utmost care and attention.
Highly adjustable wheel deck and pedal plate that give you the opportunity to create a customized and optimal racing position. Also allows for adjustments needed as your kid is growing up.
Chassis size and format is adequate for kids up to 5 ft and around 110lbs.
Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)
Four Wheel Deck options available :
Advanced Standard Wheel Deck compatible with bottom mounting wheelbases (Logitech, Thrustmaster, etc.)
Podium DD Side Mount (Fanatec Podium DD1/DD2 Series)
CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)
Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)Generation 2 Improvements & Changes
Brand new wheel deck design that offers even more flexibility and adjustability for the position of your wheelbase
Updated Pedal Tray design featuring aluminum profile cross beams and corner gussets to maximize both compatibility and rigidity
Using key learnings from our Generation 1 ASR PRO flagship chassis, we have improved the assembly and mounting system to offer the maximum possible rigidity and stability on this entry-level chassis
Now offered with our signature "Flat Face" Extruded Aluminum Profile
Meet the ASR-K, made for Kids age 4 to 12 and Karting.
The Generation 2 brings a fresh and streamlined look with flat-face profile across the entire chassis as well as new & improved mountings and brackets for more rigidity and a cleaner look
We created the ASR-K with the goal of providing an affordable chassis option for parents looking to get their kids into karting or for training at home.
The ASR-K is robust enough to support any kind of belt-driven or direct drive powered wheel base. Although it doesn't feature heavy aluminum profile like our upper tier models, it is made of top-grade alloy Aluminum sourced in the United States of America.
Available with the seat included or without the seat.
Karting seat is optional. It is predrilled to fit the ASR-K and includes low profile Button Head M8 bolts to avoid discomfort.
Produced and packaged in Canada with the utmost care and attention.
Highly adjustable wheel deck and pedal plate that give you the opportunity to create a customized and optimal racing position. Also allows for adjustments needed as your kid is growing up.
Chassis size and format is adequate for kids up to 5 ft and around 110lbs.
Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)
Four Wheel Deck options available :
Advanced Standard Wheel Deck compatible with bottom mounting wheelbases (Logitech, Thrustmaster, etc.)
Podium DD Side Mount (Fanatec Podium DD1/DD2 Series)
CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)
Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)
SPECIFICATIONS
Base composition : 3" x 1.5"
Steering column composition : 3" x 1.5"
Base length : 40"
Base width : 22"
Chassis height from rubber feet to tip of the steering column : 20"
WHAT'S INCLUDED?
Box 1 (Aluminum) 50" x 5" x 5"
2 x Aluminum profile 40" x 3" x 1.5"
2 x Aluminum profile 16" x 3" x 1.5"
1 x Aluminum profile 19" x 1.5" x 1.5"
Box 2 (Aluminum) 22" x 5" x 3"
1 x Aluminum profile 22" x 1.5" x 1.5"
Box 3 (Hardware) 10" x 8" x 4"
8 x Corner Gussets and Plastic Caps
28 x M8 Socket Cap Screws (16mm)
1x M8 Button Head Screws (12mm)
2x M8 Button Head Screws (25mm)
31 x M8 T-Nuts
Endcaps
2 x 1.5" Endcaps
6 x 3" Endcaps
14 x Pushpins
4 x Rubber feet
4 x M6 Screws (20mm)
4 x M6 T-Nuts
Box 4 (Wheel Deck)
Depending on your selection: Advanced Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Side Mount
8 x Flathead socket cap screws (16mm)
8 x M8 T-Nuts
2 x Aluminum profile 5 ⅝" x 3" x 1.5"
Box 5 (Pedal Tray)
Steel Pedal Plate - 19" x 16" x 4"
1 x 3/16" Steel Pedal Plate
Box 6 (Karting Seat)
COMPATIBILITY
Advanced Wheel Deck
Logitech products
Thrustmaster products
Fanatec entry-level and mid-range products (including the CSL DD & GT DD Pro)
Podium DD Side Mount
Fanatec Podium series DD1 and DD2
CSL DD Pro Side Mount
Fanatec CSL DD
Fanatec GT DD Pro
Front Mount
Simucube 2 Sport, Pro & Ultimate
VRS Direct Force Pro
Simagic Alpha / Alpha Mini
Other MiGE Motor-type wheel bases
Steel Pedal Plate
Asetek SimSports Invicta Sim Racing Pedals
Heusinkveld
Sim Pedals Sprint
Sim Pedals Ultimate
Sim Pedals Ultimate+
Thrustmaster products
Fanatec products (Except CSR Pedals)
Logitech products
Simtrecs ProPedal GT
Asetek SimSports Invicta Sim Racing Pedals
And much more (please inquire for specific pedal sets)
ASSEMBLY GUIDE
The ASR K assembly guide is available right here.
More assembly guides available on our dedicated page.
